Infusion warmer

  • FOB Price:Get Latest Price >
  • Min.Order:5 Piece(s)
  • Production Capacity:10000 units annually
  • Payment Terms:T/T , EXW
  • Favorite
SHENZHEN ELECTECH MEDICAL SUPPLIES CO., LTD.

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

  • Transport Package:Carton
  • Specification:Blood and infusion warming device
  • Trademark:ETV or OEM or neutrial
  • Country of Origin:China
  • Certificate:CE & RoHS

Description

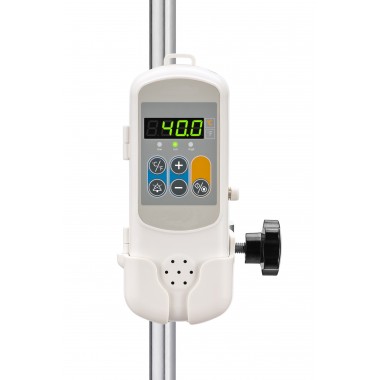

ETV-S Infusion Warmer is a ‘dry heater’, which does not directly contact the heated liquid in the working process. It transfers heat from the heat exchanger through the infusion tube to the liquid in the pipe to achieve the purpose of continuous heating to the flowing liquid. The operator can adjust the setting temperature in the range of 3542 according to the actual needs, and the heater can automatically work to the preset temperature with the built-in intelligent chip and maintain the constant temperature state after reaching the target temperature.



Features

1.      Compact size, better appearance2. 智能芯片控制,控温

2.      More accurate temperature control

3.      3. 使用简便,无需培训即可操作Easy to use and operate without training

4.      3542 temperature range adjustable, more practical

5.      Two attaching methods on I.V. stand with lanyard and bracket5. 超温保护;高低温报警等5种报警方式,更安全可靠

6.      7. 提供三种长度(25CM31CM52CM)输液管安装方式,使用更灵活Three lengths (25CM, 31CM, 52CM) of heating groove design to make infusion heating more flexible

7.      Over-temperature protection, five alarms including high and low temperature alarm, safer and more                 reliable

8.     CE and RoHs certificate



Specification

Device Dimension              180mm×70mm×35mm

Weight                                   ≈0.2KG (without knob); 0.4kg (with knob)

Display Type                          LED

Applicable IV set                  Exclusive IV Set or standard single PVC IV Set (20 and 60 d/mL, with outer diameter                                                       3.4 ~  4.5mm)

Temperature Range           354295107.6F,  0.1℃ increasement

Optional Unit                     and

Temperature Accuracy     ±1 or±1.8

Warning up time               ≤2min

Overheat Protection        48

Alarm                                     Overheat, low temperature, system error, door open, heating reminder

Input Voltage                       100-240V

Frequency                            50Hz/60Hz

Power                                    85VA
